Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution

مكان المنشأ	شنغهاي
اسم العلامة التجارية	Gofun
إصدار الشهادات	ISO, CE certification
رقم الموديل	GFM-TPL

تفاصيل المنتج

سعة:

حسب الطلب

ميزة:

كفاءة عالية ، تكلفة أرخص

الاستخدام:

خط إنتاج معجون الطماطم

الجهد االكهربى:

حسب الطلب

ضمان:

1 سنة

خدمة ما بعد البيع المقدمة:

المهندسين المتاحة لخدمة الآلات في الخارج

يكتب:

خط المعالجة المفتاح

وزن:

بناءً على آلات محددة

مادة:

SUS304

حالة:

جديد

شروط الدفع والشحن

الحد الأدنى لكمية

1 مجموعة

الأسعار

negotiable

تفاصيل التغليف

الحزمة القياسية الدولية للشحن

وقت التسليم

90 يوما

شروط الدفع

/ تي تي، خطاب الاعتماد، ويسترن يونيون

القدرة على العرض

20 مجموعة في السنة

وصف المنتج

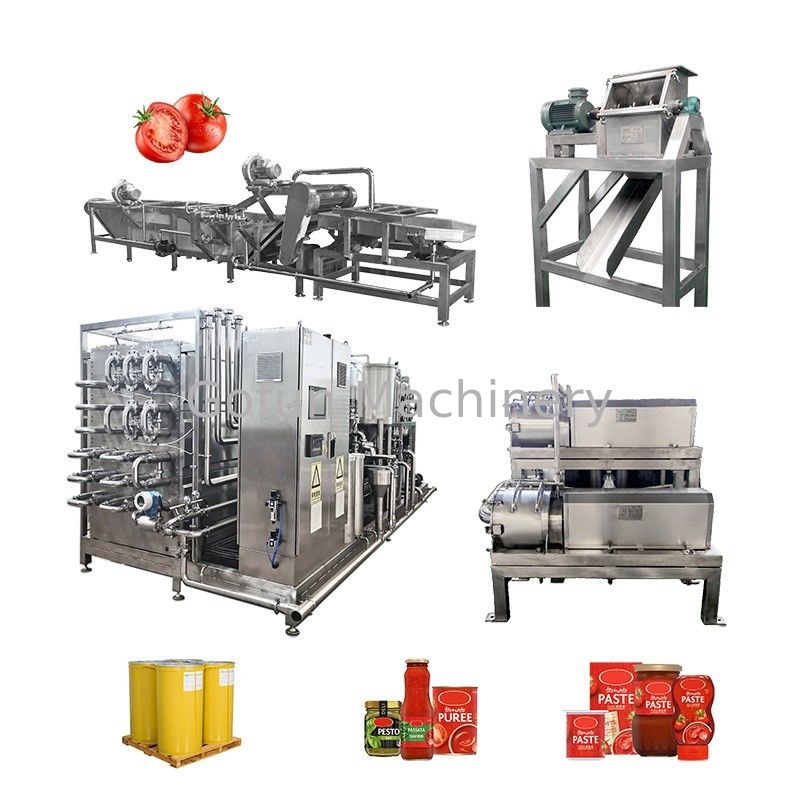

High-Capacity Tomato Sauce Processing Line

Automated ketchup production lines, featuring core equipment made of food-grade SUS304 stainless steel, offer significant benefits in industrial production. These lines incorporate automatic cleaning, sorting, pulping, concentrating, sterilizing, and filling processes, reducing manual involvement to lower labor costs and operational mistakes considerably.
With adaptable capacity ranging from 1 to 10 tons per hour, catering to both small and large facilities, these lines maintain consistent product quality by accurately regulating process parameters. This precision helps in preserving the authentic taste and nutrients of tomatoes effectively.

Complete Production Process

FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Key Features

Food-grade 304 stainless steel construction meeting FDA/CE standards
Intelligent temperature control (±1℃ precision) for consistent quality
Energy-saving design reducing operational costs by 25-30%
Customizable capacity from 500kg/h to 10t/h
PLC smart control system for automated operation
Easy-to-clean structure with minimal maintenance requirements
Versatile for various sauce types and packaging formats

Technical Specifications

Product Name	One-stop solution for tomato processing line
Fresh Fruit Input Capacity	500kg per hour ~ 25 tons per hour
Raw Material	Fresh tomato, tomato paste
End Product	Tomato paste, tomato sauce or ketchup, tomato juice, etc
Final Product Brix	28%~30%, 36%~38%
Main Machine Material	Food grade SUS304 or SUS316
Warranty	12 months after commissioning

Processing Functions

Raw Material Preparation: A vibrating screen eliminates defective tomatoes and impurities, while high-pressure bubble cleaning with brush rollers effectively cleans surfaces. Gentle conveying methods prevent skin damage.
Crushing and Pulp Extraction: A spiral crusher operates in a low-temperature environment to retain nutrients. A double-stage pulping machine separates pulp from peel and seeds.
Concentration and Pasteurization: Vacuum concentration at 60-70°C eliminates excess water while preserving lycopene. A tubular sterilizer employs 121°C rapid sterilization to eradicate microorganisms.
Final Product Packaging: An aseptic filling system prevents secondary contamination through capping, sealing, labeling, and boxing processes. Optional metal and weight detection systems are available.

Final Products & Packaging
