Tomato Paste Production Line – 5 to 50 Tons per Day with Aseptic Filling
Designed for medium to large tomato processors, this complete paste line delivers consistent Brix concentration and color stability batch after batch. The system includes a receiving hopper, roller washer, sorting belt, hammer crusher, preheater, pulping finisher, vacuum evaporator, sterilization unit, and aseptic filler.
The vacuum evaporator uses multi-effect technology to reduce steam consumption by up to 50 percent compared to single-effect designs. Operators control final Brix from 28 to 36 percent through the touchscreen panel, with real-time density readings displayed during the run.
The aseptic filler operates under sterile air pressure, filling paste into pre-sterilized bags inside drums or bins. Each filled container is weighed automatically, and any off-weight unit is rejected. The filler handles 50 to 200 liter drums at speeds up to 4 drums per minute.
A centralized CIP skid serves all process vessels and piping. The system stores up to five cleaning recipes, including caustic wash, acid rinse, and sanitization cycles. Cleaning time for the complete line is under 90 minutes.
This tomato paste production line ships pre-assembled on modular skids, reducing on-site installation time to two weeks. We include spare parts kits for screens, seals, and pump wear rings. A two-day operator training session at your facility is included in the turnkey package.
Send your planned daily fresh tomato input and target paste Brix for a custom quotation with delivery timeline.
Complete Production Process

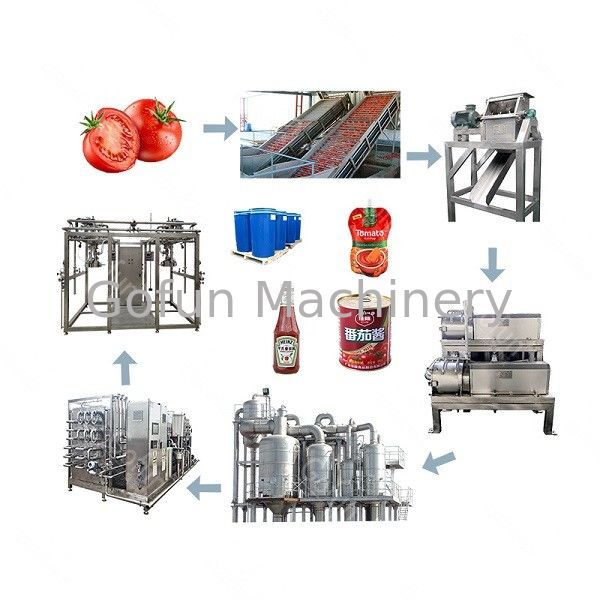

FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Key Features
- Food-grade 304 stainless steel construction meeting FDA/CE standards
- Intelligent temperature control (±1℃ precision) for consistent quality
- Energy-saving design reducing operational costs by 25-30%
- Customizable capacity from 500kg/h to 10t/h
- PLC smart control system for automated operation
- Easy-to-clean structure with minimal maintenance requirements
- Versatile for various sauce types and packaging formats
Technical Specifications
| Product Name |
One-stop solution for tomato processing line |
| Fresh Fruit Input Capacity |
500kg per hour ~ 25 tons per hour |
| Raw Material |
Fresh tomato, tomato paste |
| End Product |
Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final Product Brix |
28%~30%, 36%~38% |
| Main Machine Material |
Food grade SUS304 or SUS316 |
| Warranty |
12 months after commissioning |
This state-of-the-art tomato paste processing line integrates multiple operations, focusing on the complete tomato processing journey from initial raw material treatment to final product packaging. As a versatile production system, this line efficiently manufactures various tomato-derived products including tomato paste, tomato sauce, and tomato juice, spanning all essential processing stages.
Raw Material Preparation
The system includes comprehensive screening and cleaning components, where a vibrating screen eliminates flawed tomatoes and impurities while a high-pressure bubble cleaning machine with brush rollers thoroughly cleanses surfaces by removing mud, pesticide residues, and unwanted particles. Flexible conveying mechanisms prevent damage to tomato skins, establishing a pristine base for processing.
Crushing and Pulping
Following pretreatment, tomatoes are processed through a spiral crusher in low-temperature settings to retain nutrients and flavor. A double-stage pulping machine separates tomato pulp from peel and seeds, with the first stage eliminating larger impurities and the second stage providing fine pulping for desired consistency.
Concentration and Sterilization
Tomato pulp undergoes concentration in a vacuum concentration tank where excess water is extracted in a low-temperature vacuum environment (60-70°C). Solid content is concentrated between 10% to 30% as per specifications, preserving lycopene and essential nutrients. Concentrated pulp proceeds to tubular sterilizer using rapid high-temperature sterilization (121°C instant sterilization) to eradicate microorganisms while preventing flavor degradation.
Final Product Packaging
Sterilized tomato products are meticulously dispensed into packaging containers through an aseptic filling system maintaining an aseptic environment to prevent secondary contamination. Capping, sealing, labeling, coding, and boxing complete the packaging process, with some lines incorporating metal detection and weight detection systems to eliminate substandard products.
Final Products & Packaging
Available Packaging Options
- Aseptic bags
- Metal cans
- Sachets
- Stand-up pouches
- PP containers
- Glass bottles
- PET bottles
- Gable tops
Comprehensive Solutions
Technical Support
- Technical consultation
- Customized proposal design
- Equipment manufacturing
Implementation Services
- Installation, commissioning, and on-site training
- One-year after-sales guarantee
- Lifelong service
Additional Support
- Package design and purchasing support
- Marketing suggestions
- Factory building and design
After-Sales Service
- Debugging equipment
- Overseas technical support
- Overseas equipment maintenance
- English speaking engineers available
